CMS FXB fixed-bridge machining center

A fixed-bridge CNC machining center with 3, 4 or 5 interpolated axes for large light-alloy, composite and aluminium-sheet parts, with single or double tables. Installed and supported in India by ABS.

  • 3.12 × 3.12 mLargest single table
  • 12–32 kWElectrospindles
  • 30+Versions, per CMS

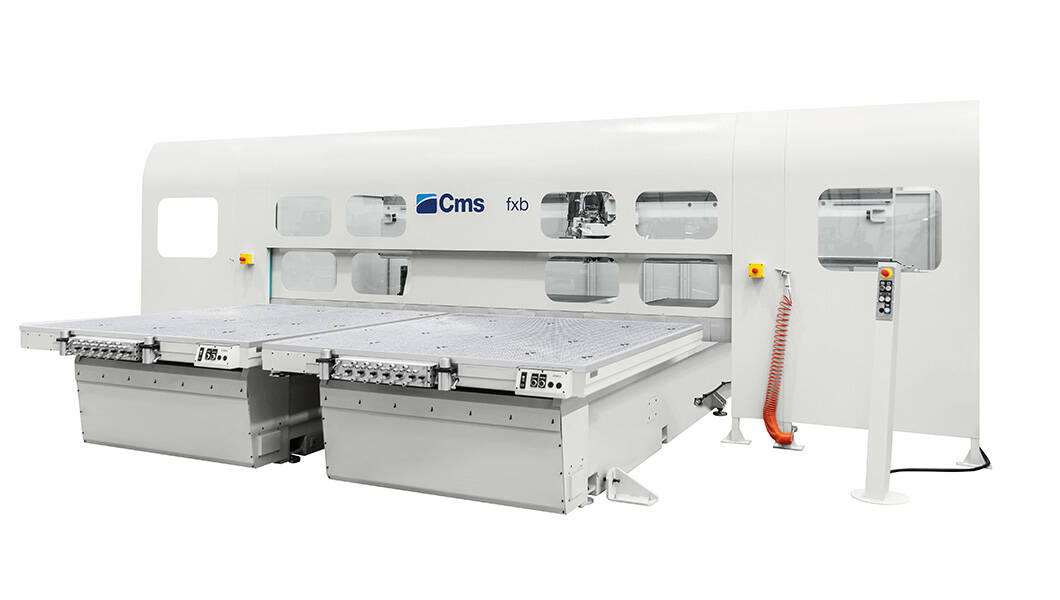

CMS FXB bridge 5-axis machining center for panels and long parts
More CMS bridge machinesMBBFXBSee the family
Specifications

FXB key figures

Figures from CMS SpA. ABS application engineers confirm the configuration for your parts in the quote.

Single-table sizes
1,860 × 1,560 mm to 3,120 × 3,120 mm; other sizes on request
Double-table sizes
2 × (1,260 × 1,560) mm to 2 × (3,120 × 3,120) mm
Axes
3, 4 or 5 interpolated; multi-unit configurations
Electrospindles
12 to 32 kW
Machining units
PX5 5-axis 12 to 20 kW; 3- or 4-axis units 12 to 32 kW; 8-spindle revolver up to 8.5 kW
Tool magazines
Disc, 8 to 16 tools; chain, 36 or 48 positions
Versions
Single table 1T, double table 2T; EX with full table extraction
Features

Rigid bridge, flexible tables

What sets the FXB apart, from CMS’s own specification.

  • Single-block fixed gantry

    The whole fixed gantry is made as a single block for rigidity and stability.

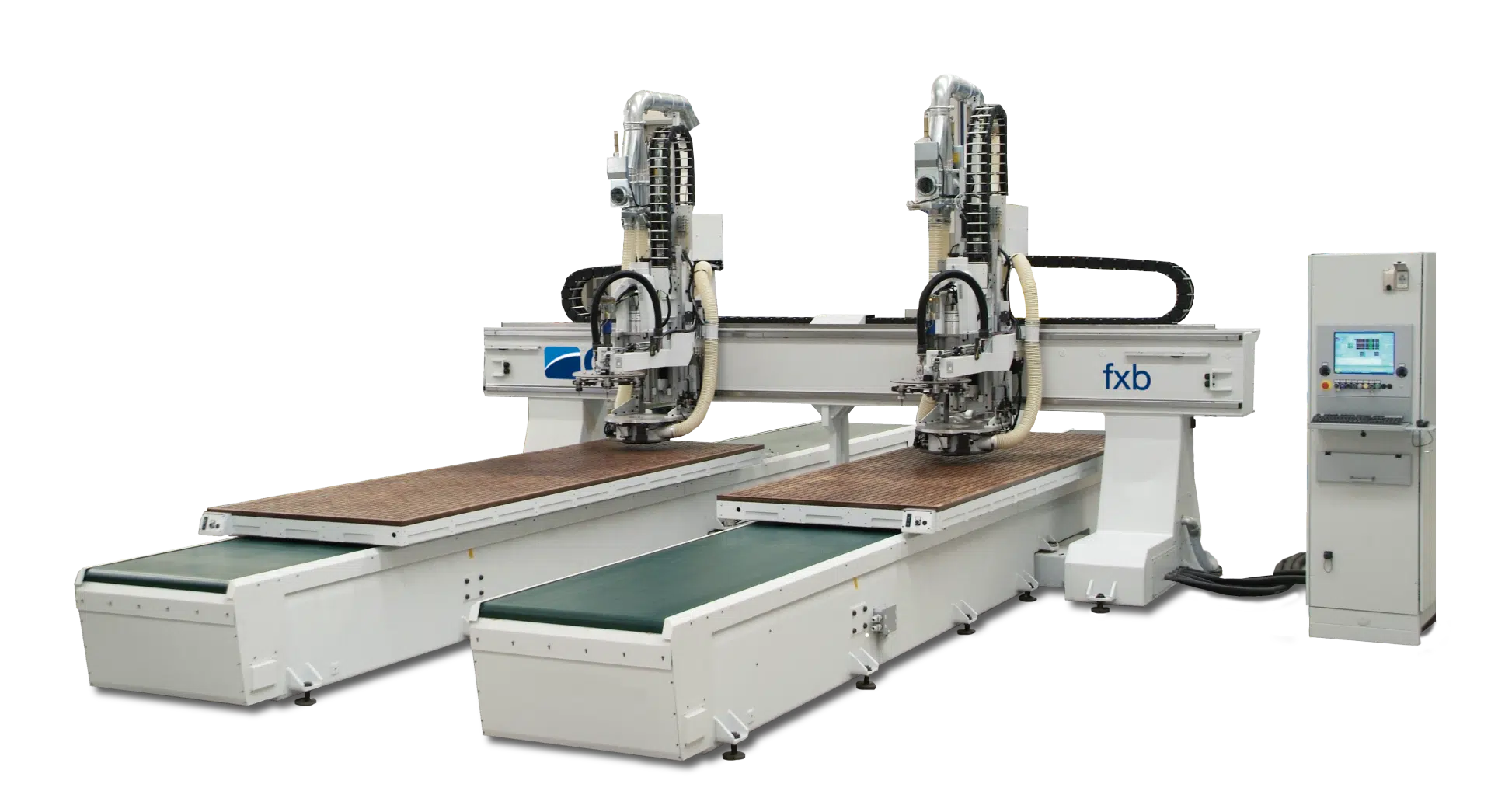

  • Twin tables, twin heads

    With a double table and double unit it works in pendulum mode, loading one table while the other runs.

  • Aluminium sheet packs

    A presser with low and high pressure modes routes sheet packs up to 12 mm thick in one pass.

  • Full table extraction

    The EX version extracts the table fully, separating the work area for dust containment, access and safety.

Applications

What the FXB makes

The uses CMS names for the FXB.

Proven in production

A UK aerostructures supplier bought two twin-table CMS FXB machines, each with two heads, to cut sheet-aluminium aerospace parts. At acceptance they cut 1,100 parts from 12 mm stacks of 2 × 1 m sheets in an 80‑minute cycle.

Source: CMS case study
In India

Installed and supported by ABS

ABS sizes the FXB to your parts, proves the process on your first-off parts, then installs it, trains your team and services it from Bengaluru.

  • Application engineeringMachine sizing, NC programming and prove-out on your first-off parts
  • Installation and commissioningOn-site, to your acceptance protocols
  • TrainingOperation, maintenance and part programming
  • Service and spare partsMaintenance contracts (AMC), calibration and genuine parts
See support and spare parts
Related machines

Other bridge machines

The same CMS family, and gantries for larger parts.

Enquiry

Request a quote for the CMS FXB

Send the part sizes, materials and volumes, and an ABS application engineer will recommend the FXB tables and units, and quote it.
