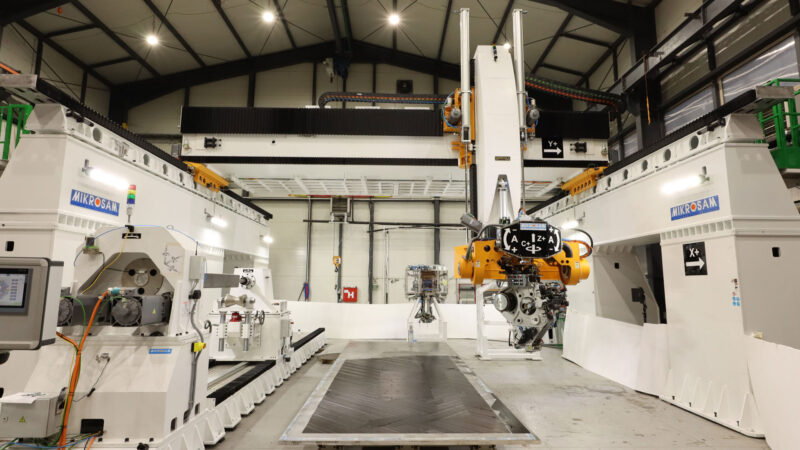

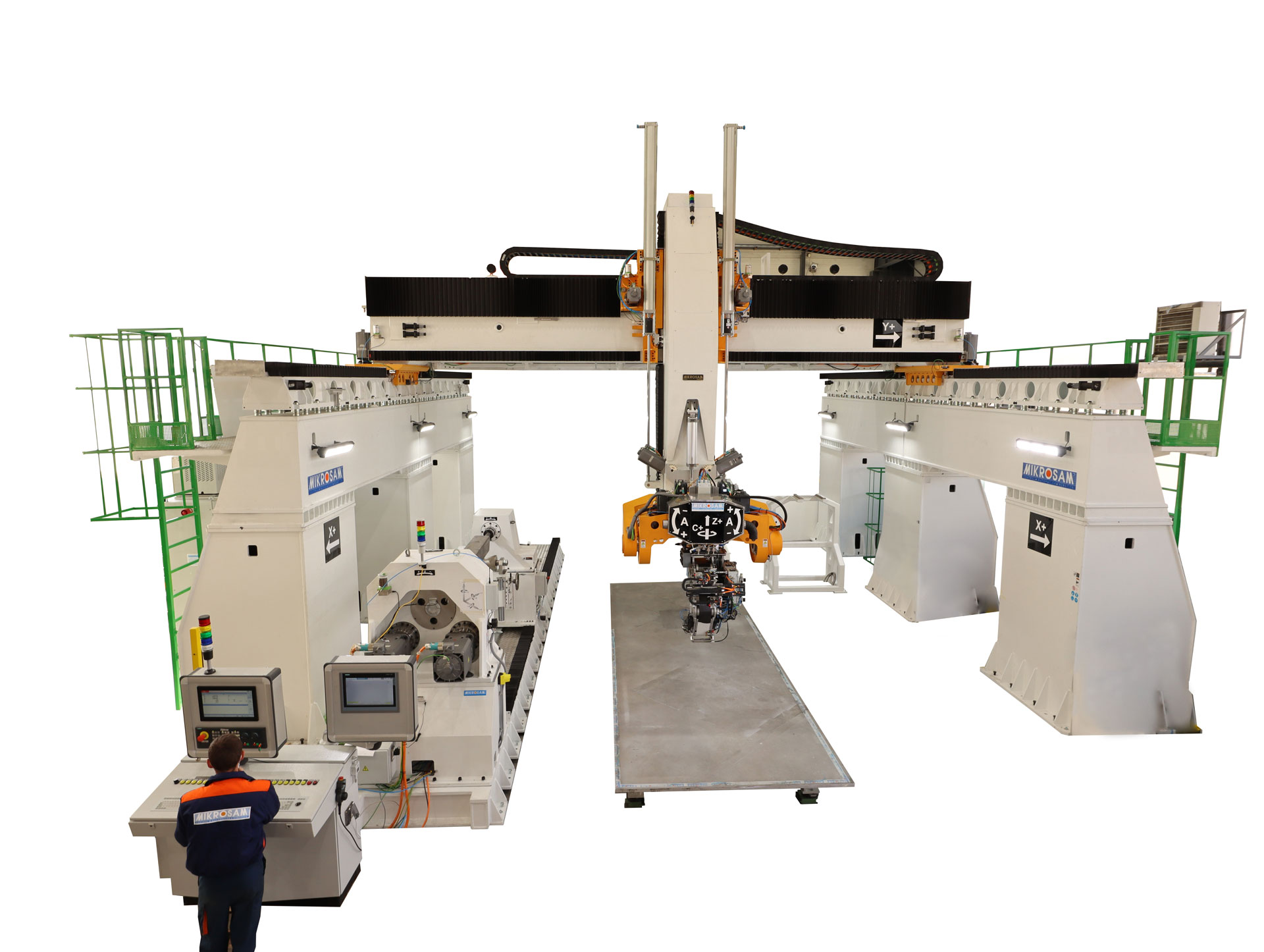

Taurus AFP/ATL

System Configuration:

• Production-grade AFP and ATL manufacturing unit

• KUKA Titan or equivalent industrial robotic platform

• High-rail or low-rail gantry configuration options

Processing Capabilities:

• AFP: 8, 16, or expanded tow configurations

• ATL: up to 300mm tape width processing

• Automated head exchange functionality

• High-reliability design for maximum operational performance

Tow Configuration:

• AFP processing: 4, 8, 16, or expanded tow arrangements

• Tow widths: 6.35mm (1/4"), 12.7mm (1/2"), or 25.4mm (1")

• Single-tape AFP capability: 6.35mm (1/4") to 50.8mm (2") tape widths

Material Compatibility:

• Thermoset, thermoplastic, and dry fiber processing

Performance Parameters:

• Maximum layup rate: 80 m/min*

• Cut-and-restart precision: ±2.5mm*

• Course placement tolerance: -0/+2.5mm*

• Minimum cut/restart spacing: ≤10mm*

• Minimum course length: 120mm*

Heating Systems:

• Infrared heating: 1kW and higher

• Laser heating: 3, 4, 6kW or greater capacity

• Integrated infrared and visual process monitoring cameras


*Performance dependent on material properties, cell configuration, controller specifications, tooling geometry, and processing speed for production reliability

Tape Processing Capabilities:

• ATL processing: up to 300mm (12") wide tape configurations

• Available widths: 50mm (2"), 75mm (3"), 150mm (6"), 300mm (12")

Cutting Technology:

• Dual ultrasonic knife contour cutting system

• Pre-layup defect detection capabilities

• Patented ATL head design

Platform Configurations:

• Robotic, high-rail gantry, low-rail portal, and column-based architectures

• Optional environmental enclosure systems

Scale Options:

• Laboratory-scale and industrial production equipment for serial manufacturing

Integration Capabilities:

• Multi-function work-cell integration for enhanced productivity and ROI optimization

• Custom design solutions and specialized functionality available

Motion Control:

• Robotic linear and tool rotational axis systems

Integration Features:

• Barcode reading systems with factory automation integration

• Laser projection and inline inspection capabilities

• Ultrasonic trimming functionality
