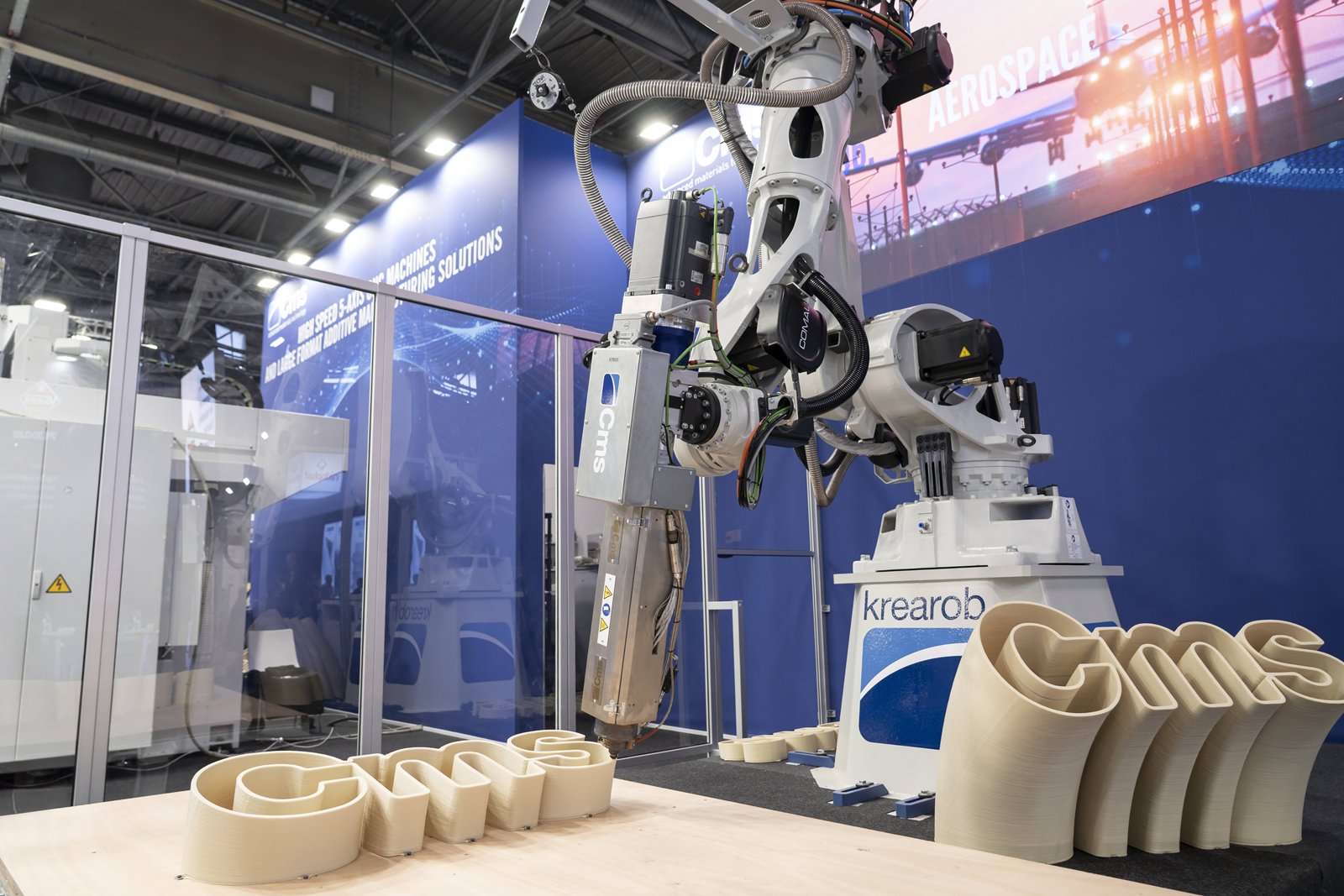

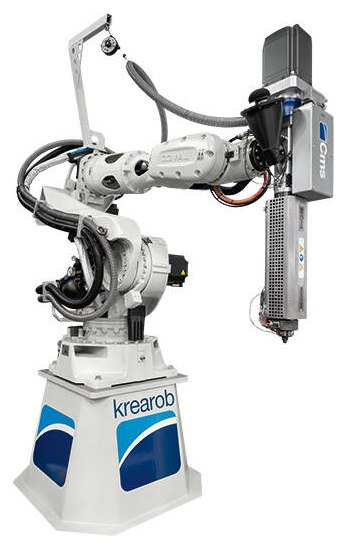

CMS Krearob robotic large-format 3D printing cell
A 6-axis robotic system for large-format additive manufacturing of thermoplastic polymers, printing on 3 and 5 axes, on Comau kinematics with a Sinumerik ONE control. Installed and supported in India by ABS.
- 30 kg/hExtruder
- 3 mWorking radius
- 3 and 5 axesPrinting
Krearob key figures
Figures from CMS SpA. ABS application engineers confirm the configuration for your parts in the quote.
- Process
- Additive manufacturing
- Architecture
- 6-axis robot
- Printing
- On 3 and 5 axes
- Extruder
- 30 kg/h
- Working radius
- 3 m
- Worktable
- 2.5 × 1.5 m
- Kinematics
- Comau
- CNC
- Sinumerik ONE
Robotic freedom for large parts
What sets the Krearob apart, from CMS’s own specification.
6-axis robot
The robotic architecture gives geometric freedom for large parts and complex shapes, with optimised material deposition.
One integrated platform
CMS’s own extrusion unit, software and HMI cover programming, simulation and printing in one environment.
Material savings
CMS states up to 80% less material and weight than traditional manufacturing technologies.
Lower emissions
CMS states up to 60% lower CO₂ emissions than conventional processes, from a life-cycle assessment.
What the Krearob makes
The uses CMS names for the Krearob.
- Large thermoplastic components
- Complex geometries
- Thermoplastic production parts
Installed and supported by ABS
ABS works out with you which parts to print, proves the print programs, then installs the cell, trains your team and services it from Bengaluru.
- Application engineeringMachine sizing, NC programming and prove-out on your first-off parts
- Installation and commissioningOn-site, to your acceptance protocols
- TrainingOperation, maintenance and part programming
- Service and spare partsMaintenance contracts (AMC), calibration and genuine parts

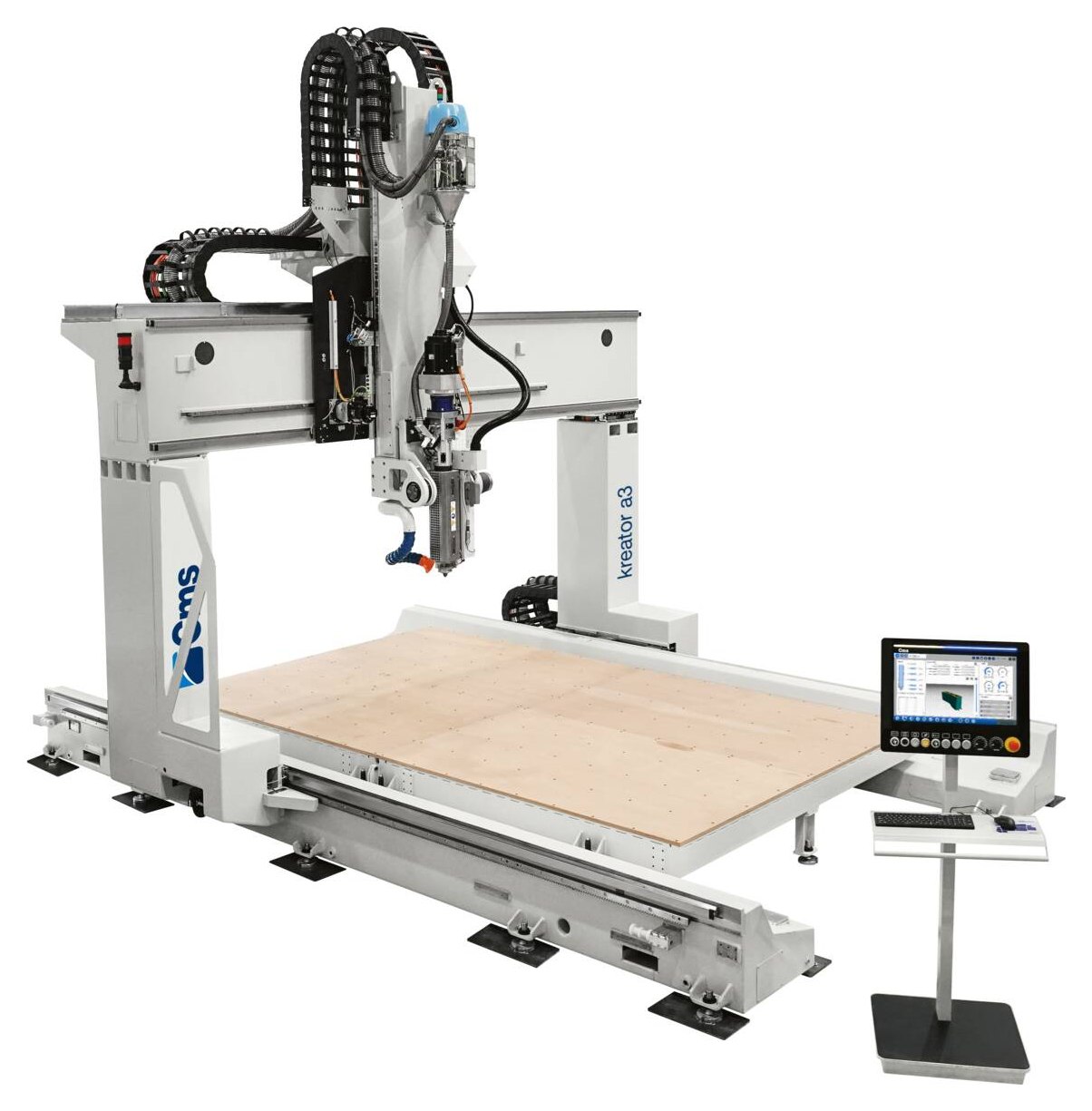

Other additive machines
The rest of the CMS additive range.
Request a quote for the CMS Krearob
Send the part sizes and the material, and an ABS application engineer will check the print approach with CMS, and quote it.
