CMS Kyros 5-axis monobloc machining center

A high-speed monobloc 5-axis CNC machining center with a small footprint, a high-load worktable and no need for special foundations. Installed and supported in India by ABS.

2.0 × 2.6 mWorktable
24 or 32 kWElectrospindle (S1)
24,000 rpmSpindle speed

CMS Kyros 5-axis monobloc machining center

More CMS monobloc machinesKyrosARES Antares MK3 Athena VM 30K Ikon See the family

Specifications

Kyros key figures

Figures from CMS SpA. ABS application engineers confirm the configuration for your parts in the quote.

X / Y / Z strokes: 2,000 / 2,600 / 1,300 mm
A / C axes: ±110° / ±300°
Rapids: X and Y 50 m/min, Z 40 m/min, A and C 9,000°/min
Worktable: 2,000 × 2,600 mm, high load capacity
Working units: KX5 24_24 and KX5 32_24 (compact monoarm)
Electrospindles: 24 or 32 kW (S1), 24,000 rpm, 23 or 68 Nm, liquid-cooled
Tool holder: HSK 63 A, automatic tool change
Tool magazine: 30-position disc, or a chain magazine
Versions: Dry, or with a cutting-fluid system

Features

Compact and quick to install

What sets the Kyros apart, from CMS’s own specification.

Small footprint
The monobloc structure keeps floor space down and needs no special foundations, which CMS says makes installation and start-up easy.

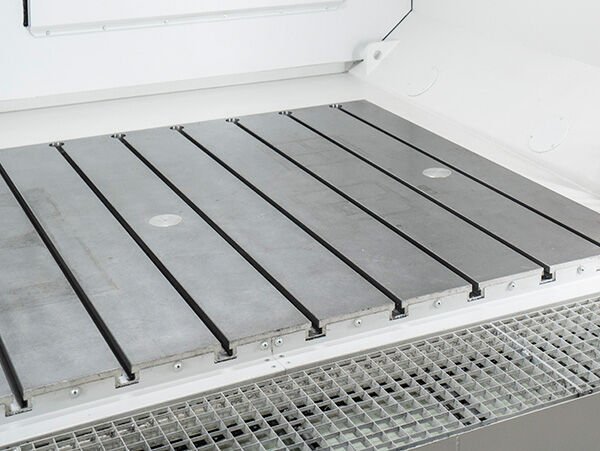

High-load worktable
A worktable with a high load capacity for heavy industrial work and large components.

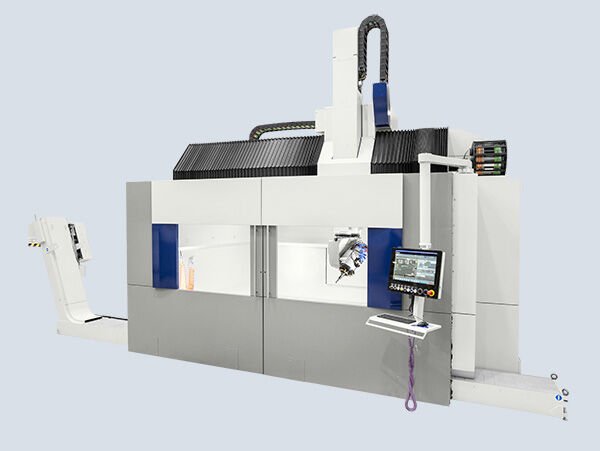

Cutting-fluid version
Also offered with a cutting-fluid system, so the machine suits metals as well as composites.
Work-area equipment
Chip removal, tool magazine, laser tool presetting and a bellows-type opening roof.

Applications

Where the Kyros is used

The sectors CMS names for the Kyros. Follow one to see what ABS supplies for it.

In India

Installed and supported by ABS

ABS sizes the Kyros to your parts, proves the process on your first-off parts, then installs it, trains your team and services it from Bengaluru.

Application engineeringMachine sizing, NC programming and prove-out on your first-off parts
Installation and commissioningOn-site, to your acceptance protocols
TrainingOperation, maintenance and part programming
Service and spare partsMaintenance contracts (AMC), calibration and genuine parts
