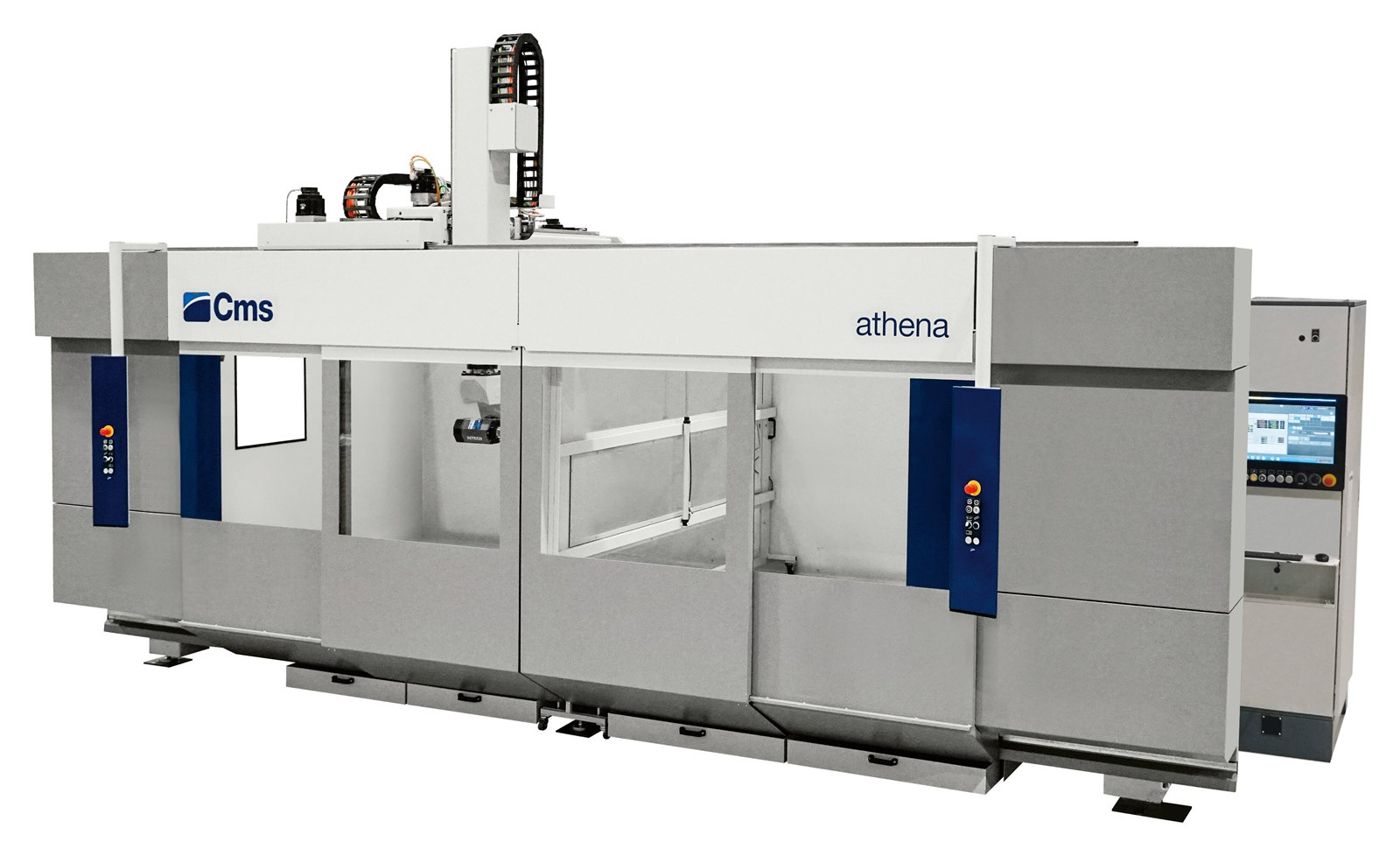

CMS Athena high-speed 5-axis machining center

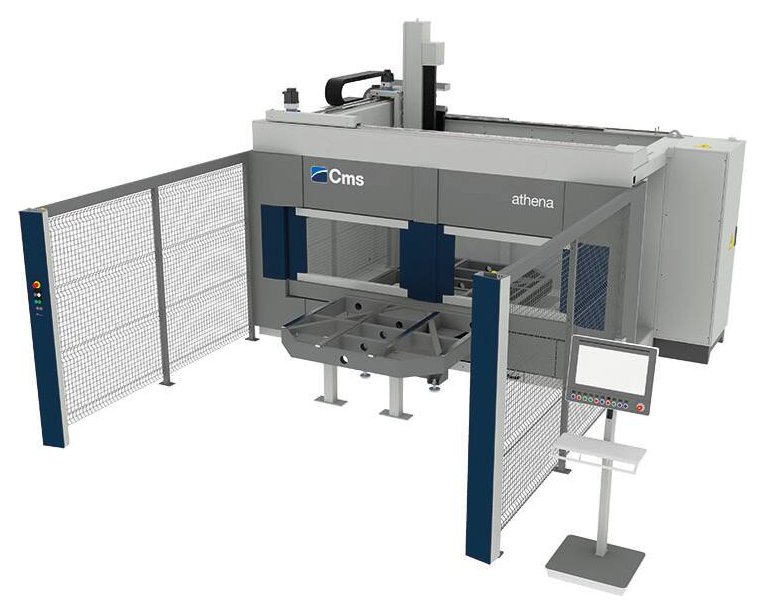

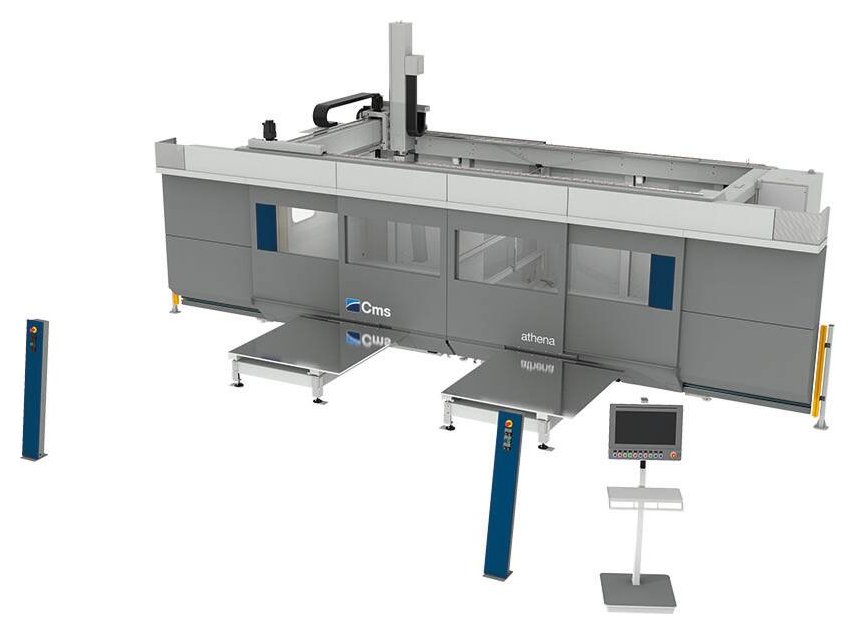

A high-speed 5-axis machining center with a mobile gantry for trimming composite, plastic and aluminium parts, in standard, APC and TR versions. Installed and supported in India by ABS.
- 2.2–5.2 mX stroke
- 90 m/minRapids, X and Y
- 14,000°/minRotary rapids
Athena key figures
Figures from CMS SpA. ABS application engineers confirm the configuration for your parts in the quote.
- X stroke
- 2,200 / 3,200 / 4,200 / 5,200 mm (APC: 4,370 / 5,370 mm)
- Y stroke
- 1,500 or 2,000 mm (APC: 2,500 mm)
- Z stroke
- 900 or 1,200 mm
- B / C axes
- ±120° / ±370°
- Rapids
- X and Y 90 m/min, Z 60 m/min, B and C 14,000°/min
- Electrospindles (S1)
- CX5: 8.5 kW; CX5 10: 10 kW; CX5 8: 8 kW
- Speed
- 24,000 rpm (CX5, CX5 10) or 40,000 rpm (CX5 8)
- Tool storage
- 6 or 12 stations, 8 or 16 optional
- Sizes
- Athena 2015, 3015, 4015, 5015, 3020, 4020, 5020; APC 4025, 5025; TR 2015, 3015, 4020
Built for trimming
What sets the Athena apart, from CMS’s own specification.
Mobile gantry built for finish
Cross beams damp the vibration from machining for a better finish, and the base is laid out so the operator can prepare the next job.
One work area or two
A single zone, or two zones split by a central partition for pendulum work, with motorised doors for wide access.
CX5 operating unit
CMS says its large rotary axes avoid repositioning and cut cutting times by 15%.
Smart4Cut programming
Trimming paths come from the 3D model or are taught on the sample part with a portable joystick keypad.
Where the Athena is used
The sectors CMS names for the Athena. Follow one to see what ABS supplies for it.
- Aerospace
- Aeronautics
- Automotive and motor sport
- Marine
- Carbon fiber components
- Aluminium parts
Installed and supported by ABS
ABS sizes the Athena to your parts, proves the process on your first-off parts, then installs it, trains your team and services it from Bengaluru.
- Application engineeringMachine sizing, NC programming and prove-out on your first-off parts
- Installation and commissioningOn-site, to your acceptance protocols
- TrainingOperation, maintenance and part programming
- Service and spare partsMaintenance contracts (AMC), calibration and genuine parts
Other monobloc machines
The same CMS family.
Request a quote for the CMS Athena
Send the part sizes, materials and volumes, and an ABS application engineer will recommend the Athena size and version, and quote it.
