CMS Ikon horizontal 5-axis machining center

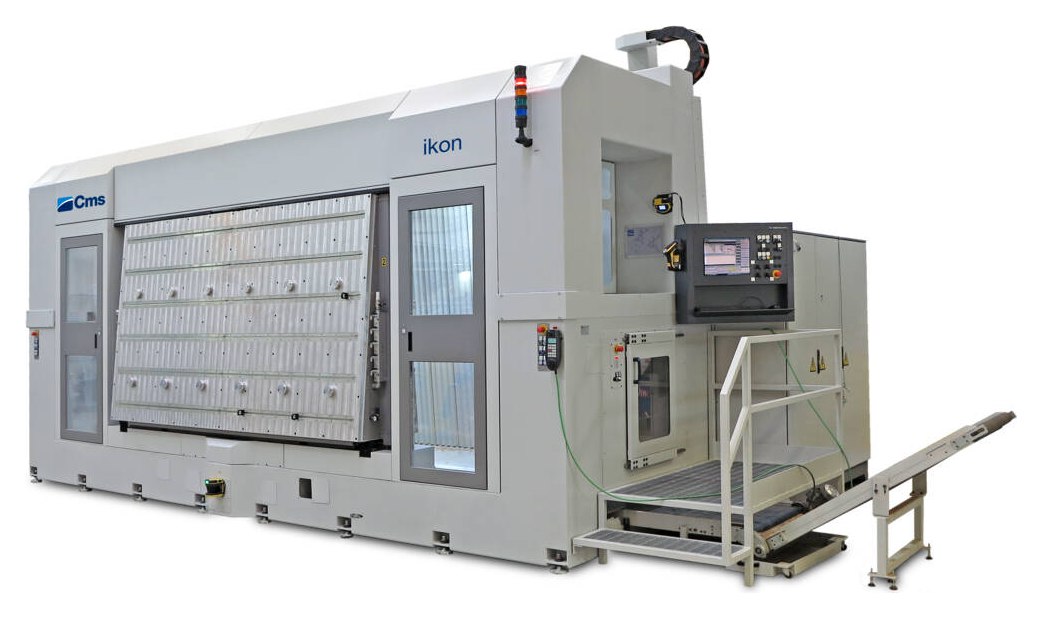

A monobloc 5-axis horizontal machining center with two vertical rotary tables and one or two operating units, for aluminium and composite parts in volume. Installed and supported in India by ABS.
- 2Vertical rotary tables
- 3,100 × 1,800 mmEach table
- 41%Smaller footprint, per CMS
Ikon key figures
Figures from CMS SpA. ABS application engineers confirm the configuration for your parts in the quote.
- Strokes
- X 3,600 mm (Ikon DB: 2,400 mm per bridge), Y 2,000 mm, Z 900 mm
- A / C axes
- ±120° / ±270°
- Worktables
- Two of 3,100 × 1,800 mm
- Rapids
- X and Y 80 m/min, Z 70 m/min, A and C 9,000°/min
- Working units
- PX5 at 12, 15 or 20 kW, 24,000 rpm; liquid-cooled
- Tool changer
- 16 positions per operating unit
- 5-axis envelope
- 3,000 × 1,400 × 600 mm; 1,800 × 1,400 × 600 mm per unit with two units
- Versions
- Ikon (single bridge) and Ikon DB (double bridge)
Two machines in one
What sets the Ikon apart, from CMS’s own specification.

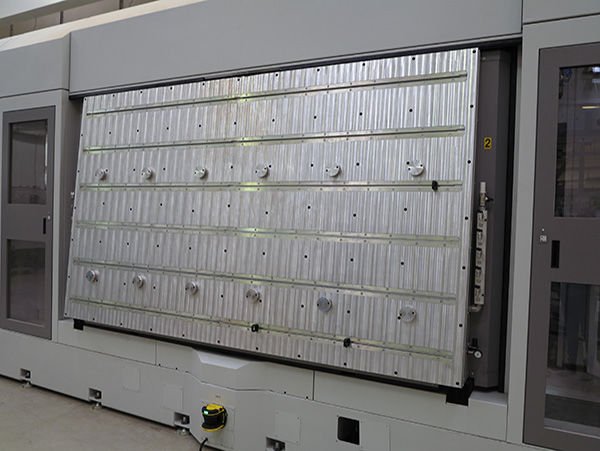

Two vertical rotary tables
One table is loaded and unloaded while the other is machined, so work does not stop.

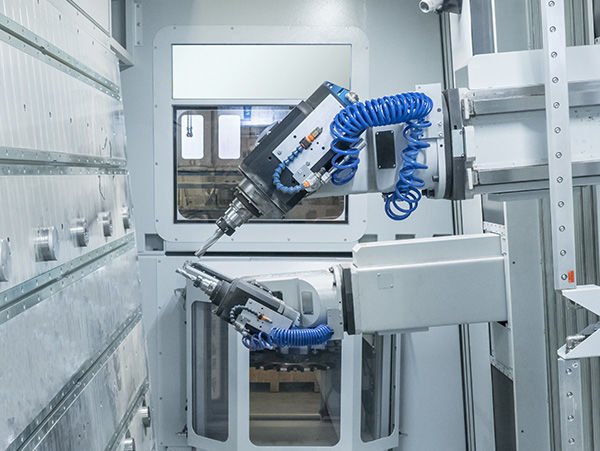

One or two operating units
One unit, two coupled on identical parts, two mirrored on symmetrical parts, or two independent units.
Compact footprint
CMS states the vertical-table layout is 41% smaller than usual configurations, and loading outside the work area suits automated cells.
Chip and dust control
A total enclosure; chips drop from the vertical tables onto a motorised belt and suction inlets clear the dust.
Where the Ikon is used
The sectors CMS names for the Ikon. Follow one to see what ABS supplies for it.
- Aerospace
- Aeronautics
- Automotive and F1
- Rail
- Carbon fiber components
- Aluminium parts
Installed and supported by ABS
ABS sizes the Ikon to your parts, proves the process on your first-off parts, then installs it, trains your team and services it from Bengaluru.
- Application engineeringMachine sizing, NC programming and prove-out on your first-off parts
- Installation and commissioningOn-site, to your acceptance protocols
- TrainingOperation, maintenance and part programming
- Service and spare partsMaintenance contracts (AMC), calibration and genuine parts
