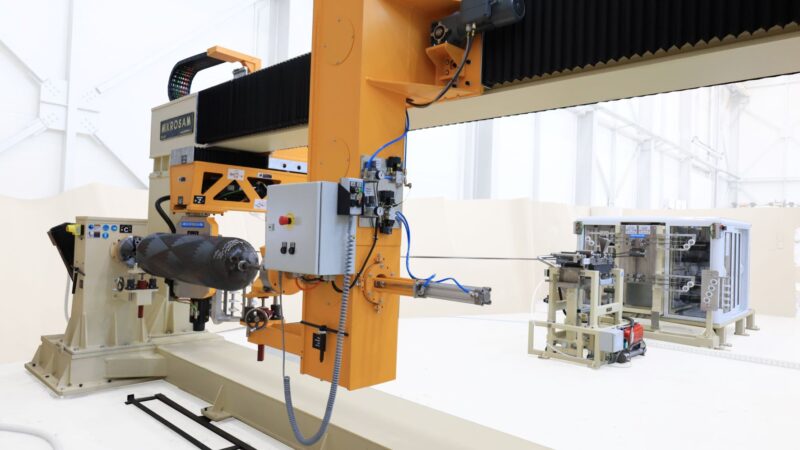

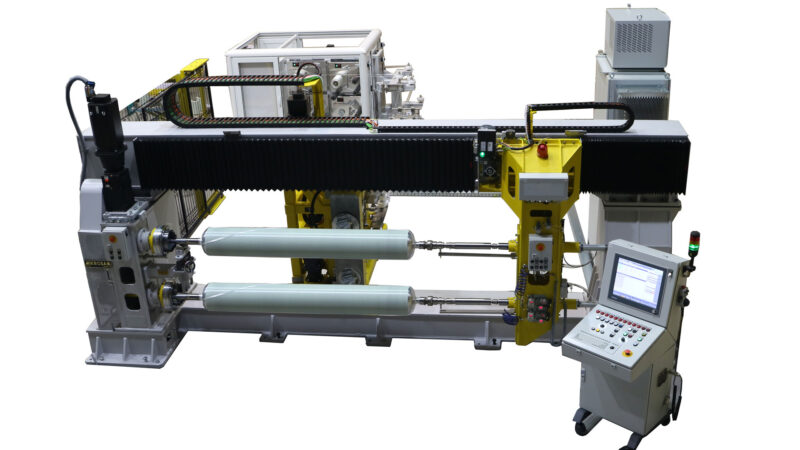

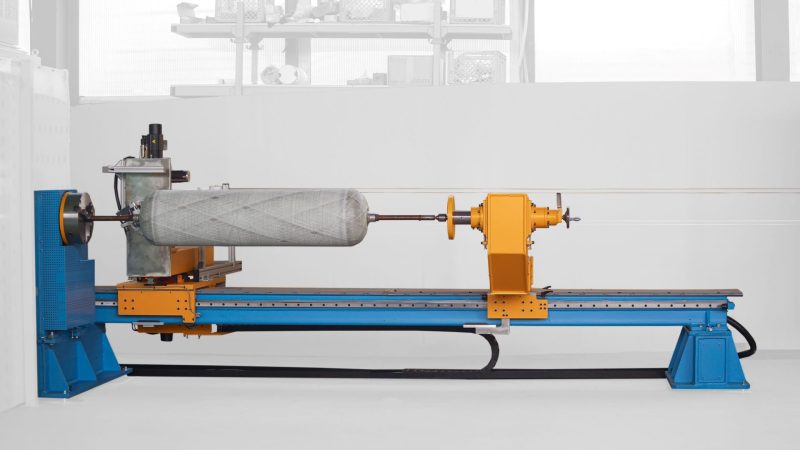

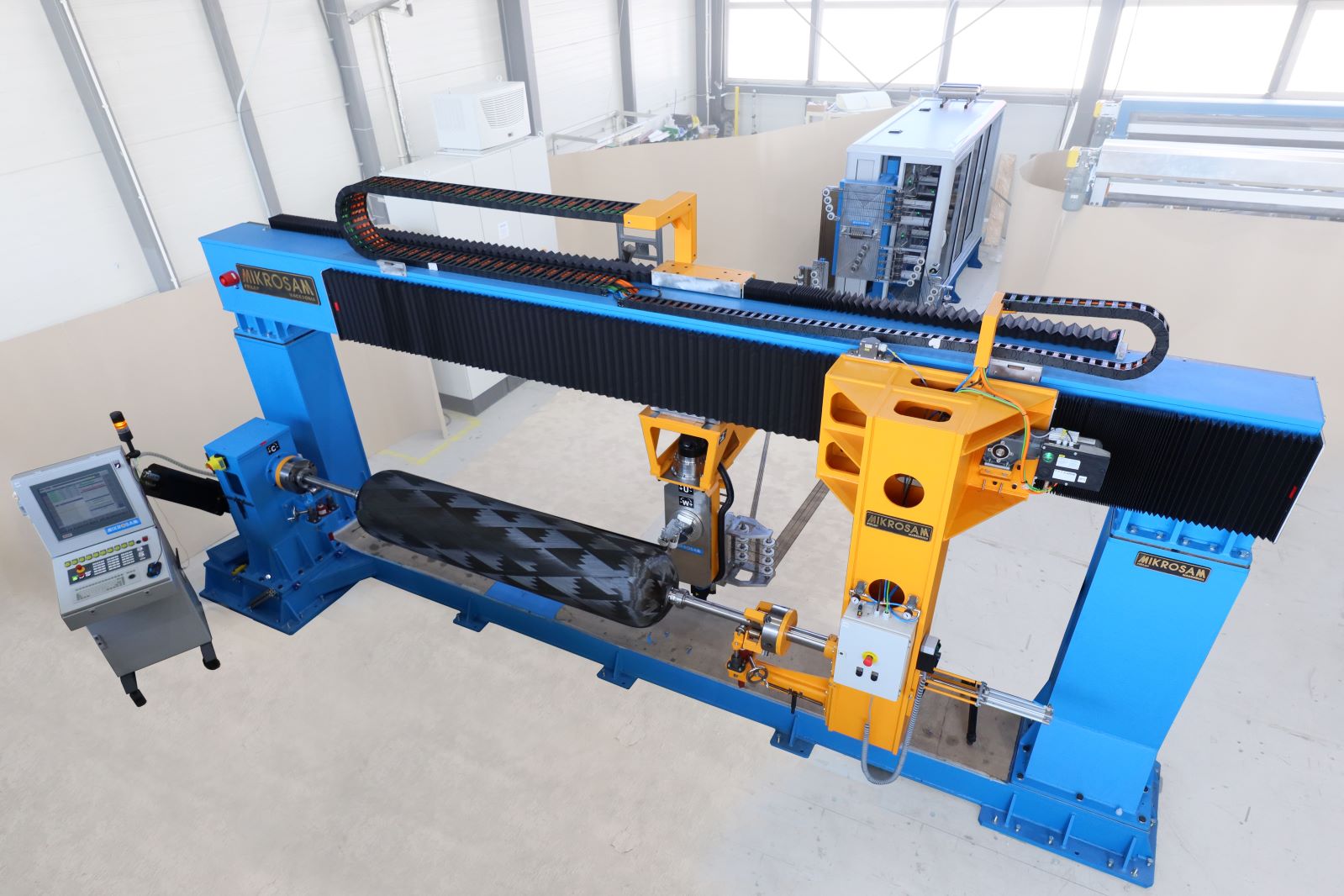

Lab Filament Winding Machines

• R&D and small-scale filament winding systems deliver precise, flexible fiber placement with process control.

• Compact design fits lab or pilot environments without sacrificing performance.

• Cost-efficient for prototyping and testing, minimizing waste and setup time.

• Scalable from development cells to production lines.

• Advanced tension and speed regulation ensure consistent quality.

• User-friendly interface.

• Up to five interpolated axes for advanced winding trajectories.

• Supports both wet-resin and towpreg winding processes.

• Mandrel diameter range: 50 mm to 1 m.

• Mandrel length range: 300 mm to 3 m.

• Maximum mandrel payload: 500 kg.

• Individual fiber tension control: 5–80 N per tow.

• Winding angle flexibility: 0°–90°.

• Electronic fiber creel capacity: up to four carbon or eight glass tows.

• Modern CNC-based computer control system.

• Integrated PC software: Winding Commander and Winding Expert.

• Comprehensive safety systems for all operating modes.

• Tailored for prototype development, material experimentation, and novel composite testing, Mikrosam’s compact filament winding units provide precise control over fiber placement.

• High-precision tension regulation and multi-axis angle control ensure repeatable, superior winding quality.

Applications:

• Research and Development

• Academic Laboratories

• Aerospace and Automotive Prototyping

• Specialized Composite Manufacturing
