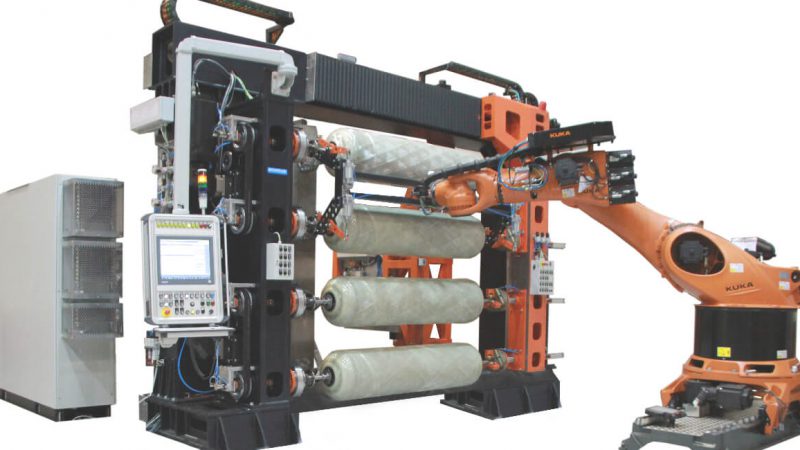

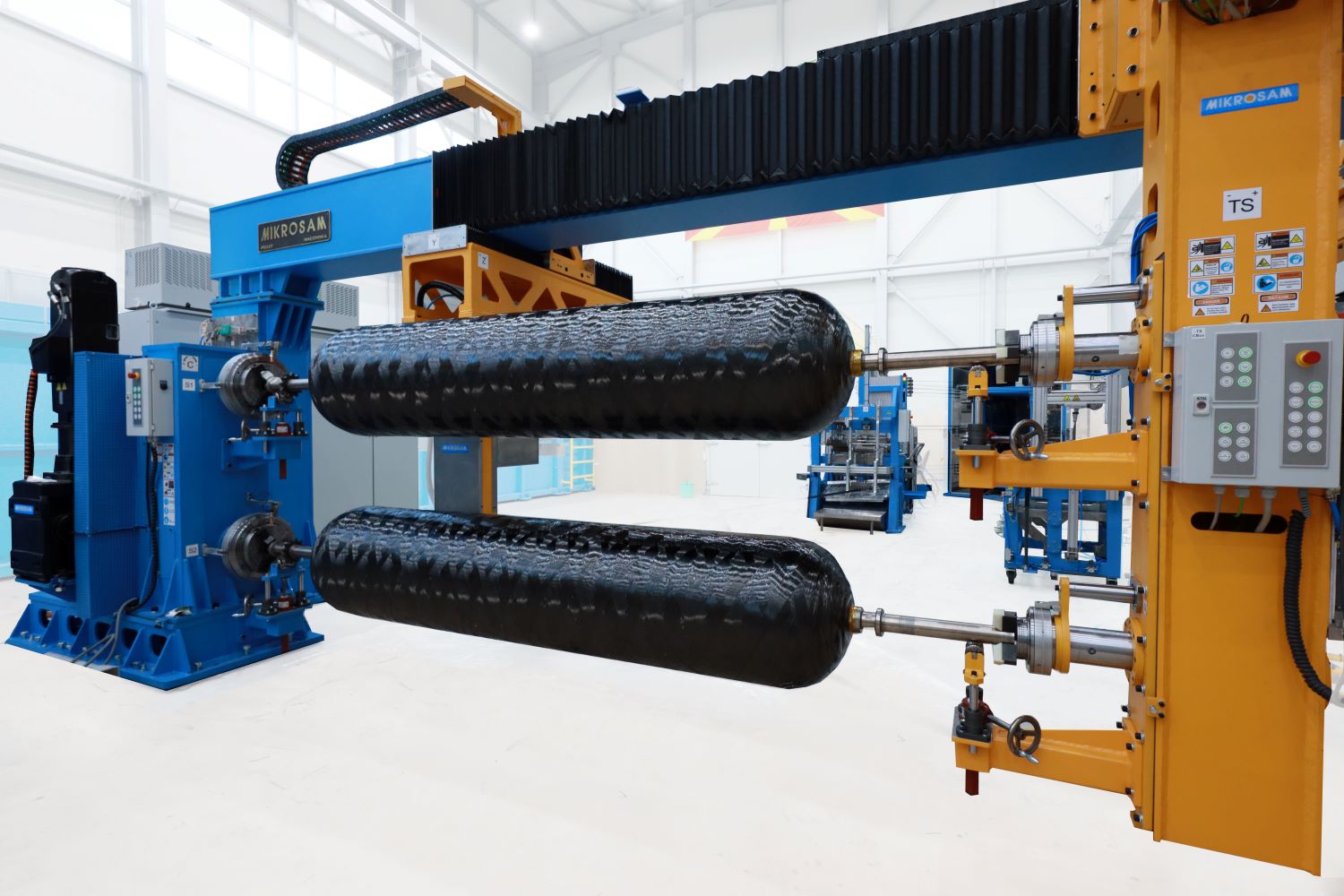

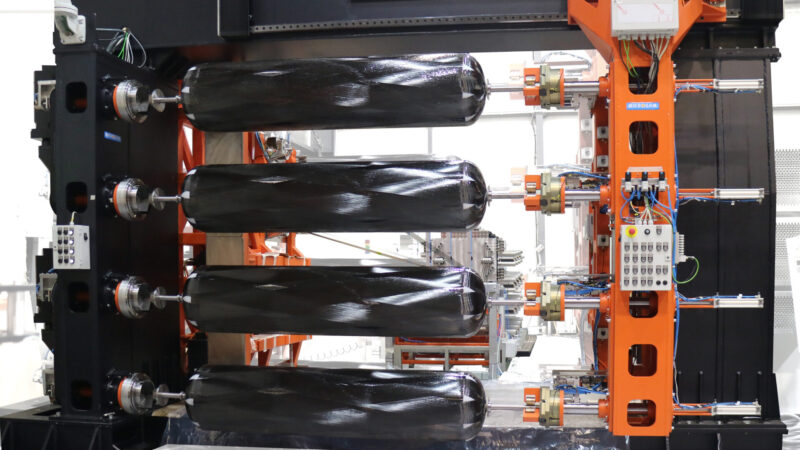

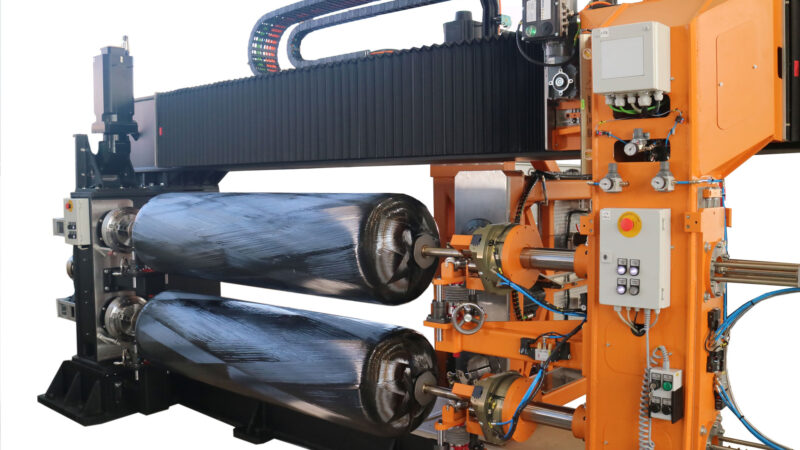

Multi-Spindle Filament Winding Machines

Advanced winding platforms engineered for LPG, CNG, hydrogen, and other high-pressure composite vessels

High-throughput production capacity for large-batch manufacturing

Multi-spindle winding: up to five independent spindles operating concurrently

Customizable system configurations to suit specific vessel geometries and production requirements

Wet-resin and dry-towpreg winding process compatibility

Robust design ensuring stable, precise fiber placement and consistent geometric accuracy

Structural Design: Robust construction for heavy-duty operation

Mandrel Geometry: Diameter range 50 mm to 800 mm; length range 600 mm to 3 m

Load Capacity: Maximum mandrel payload 500 kg

Tension Control: Individual fiber tension adjustable from 5 N to 80 N

Winding Kinematics: Up to five interpolated control axes; winding angle 0°–90°

Spindle Configuration: 2- to 5-spindle simultaneous winding arrangements

Winding Patterns: Circumferential (hoop) and helical layup capabilities

Carriage System: Dual-carriage architecture for synchronized, precision fiber placement

Quality Assurance: Integrated QCS (Quality Control System) for in-process inspection and feedback control
