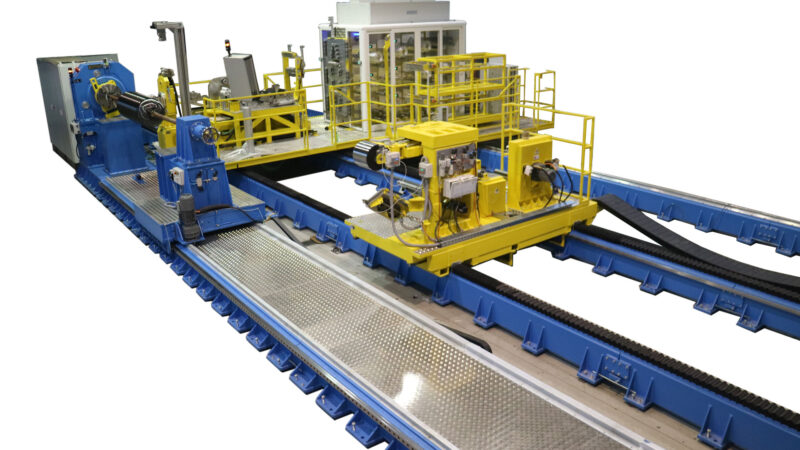

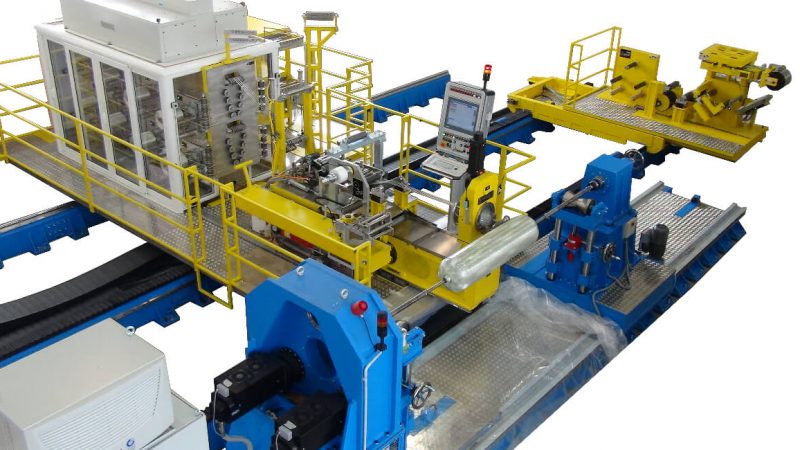

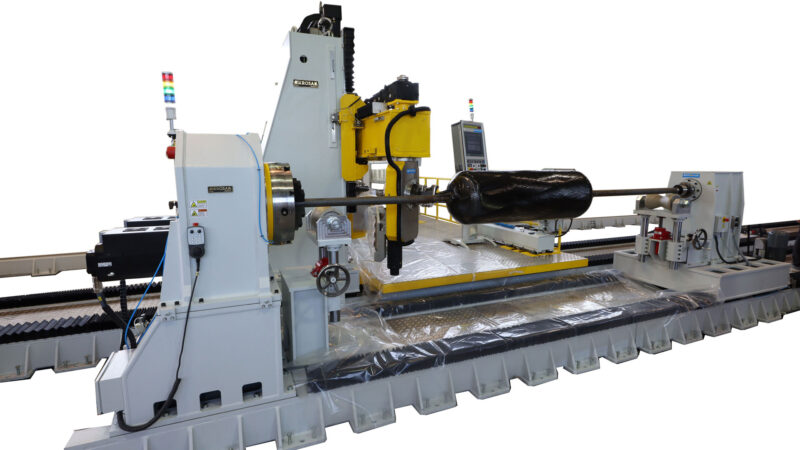

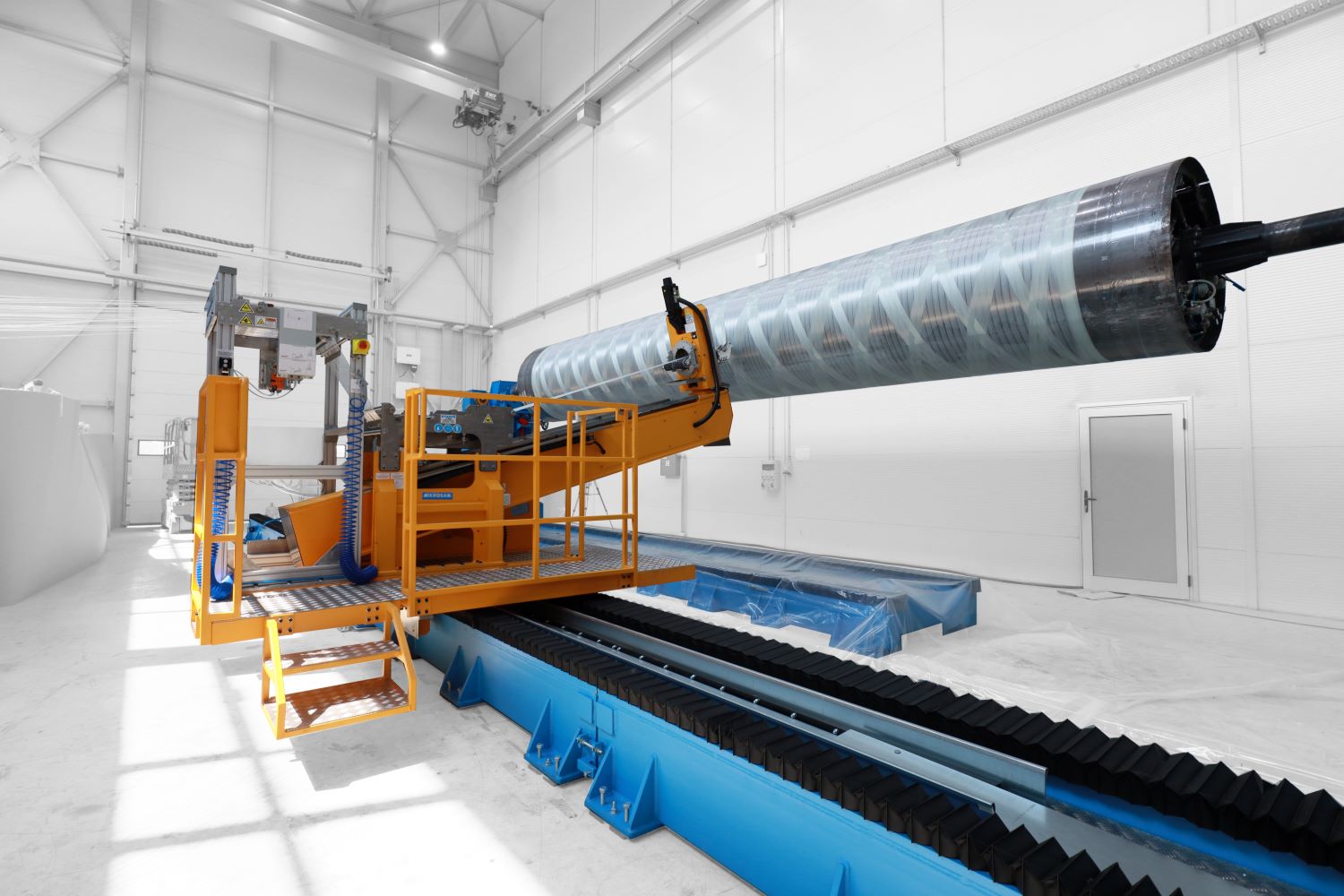

Floor-bed Filament Winding Machines

Structural Design:
Rugged steel frame construction with customizable carriage bed lengths per client specifications

Material Handling:
Integrated carriage-mounted fiber creel option for continuous material feed

Spindle Configuration:
Single- or dual-spindle arrangements supporting large-diameter fiber delivery

Automated Processing Cell:
First fully automated single-cell combining AFP and filament winding technologies for fabricating large, geometrically complex composite components

Winding Capabilities:
Both wet-resin and dry-towpreg winding modes

Performance:
Engineered for high-throughput production of large-scale composite structures while ensuring precision and consistency across intricate part geometries.

Geometric Capacity:
– Mandrel diameter range: 50 mm to 4 m
– Mandrel length range: 1 m to 30 m

Load & Tension Control:
– Maximum mandrel payload: up to 80 t
– Tape tension control: 500–4 000 N
– Individual tow tension: 5–80 N

Winding Capability:
– Winding angle flexibility: 0°–90°
– Up to six programmable axes

Control & Safety Systems:
– Integrated modern CNC control platform
– Comprehensive safety interlocks across all operational modes

Additional Functionality:
– Optional prepreg and alternative tape winding modes
